Slitting line machine
Technical Parameter
| NO. | Name | Unit | Parameters |
| 1 | Control model | | Frequency conversion control |
| 2 | Materials | | Cold rolled steel, Galvanized steel ,Aluminium |
| 3 | Thickness | mm | 0. 2-1.5 |
| 4 | Width | mm | 500-1500 |
| 5 | Coil I.D. | mm | 480-520 |
| 6 | Coil O.D. | mm | ≤1400 |
| 7 | Weight | T | 6 |
| 8 | Slitting blade shaft | mm | Φ120 |
| 9 | Blade specification | mm | Φ220×Φ120×10 |
| 10 | Material of blade | | 6CrW2Si |
| 11 | Line speed | m/min | ≤15 |
| 12 | Power of decoiler | KW | 11 |
| 13 | Power of slitting machine | KW | 15 |
| 14 | Power of recoiler | KW | 30 |
| 15 | Leveling roller diameter | | 55mm |
| 16 | Width tolerance | | ≤±0.05 mm |
| 17 | The direction of whole line | | from right to left, the operate table faces the machines |
| 18 | Power | | 380V/3Ph/50Hz( Customized) |
| 19 | Operation people | | 1 technician and 1 general worker |
| 20 | Color | | green ( Customized) |
Cut-to-length Line Machine Components
| NO. | Equipment name | Quantity |
| 1. | 5 Ton hydraulic decoiler | 1 set |
| 2. | Hydraulic pinch and press and pre-leveling device | 1 set |
| 3. | Slitting machine | 1 set |
| 4. | Scrap winder | 1 set |
| 5. | Tension stand | 1 set |
| 6. | Hydraulic recoiler | 1 set |
| 7. | Electrical control system | 1 set |
Advantage for Slitting Machine Line
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
Working Flow
Decoiler---Leveling---Cutting---Recoiler
Photo Gallery
Loading pictures
Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.

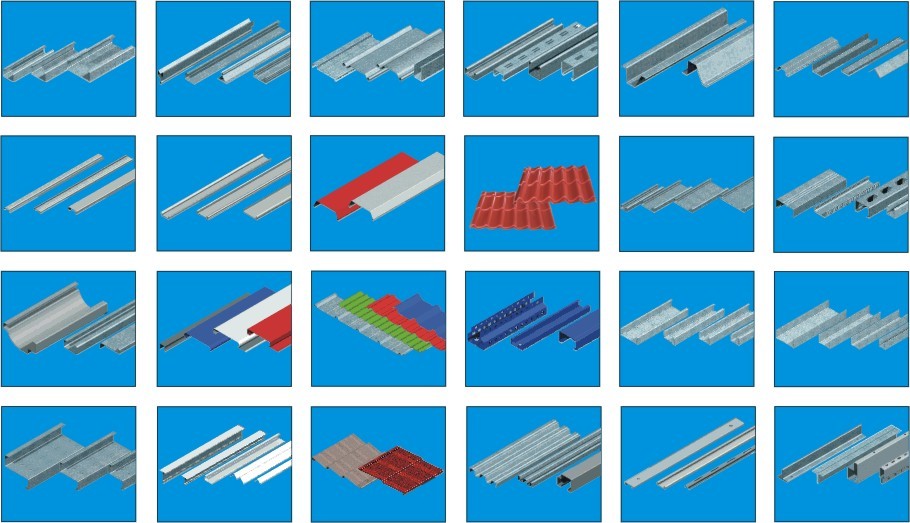

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
Sussamn machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
